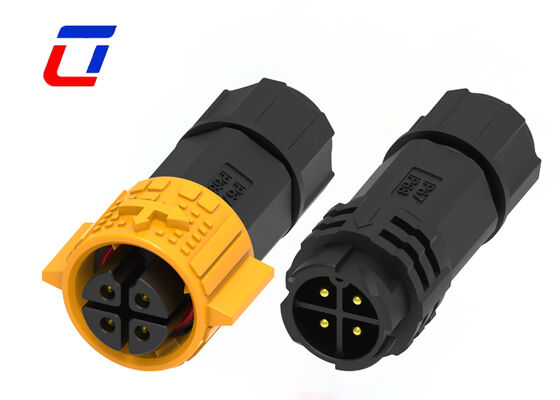

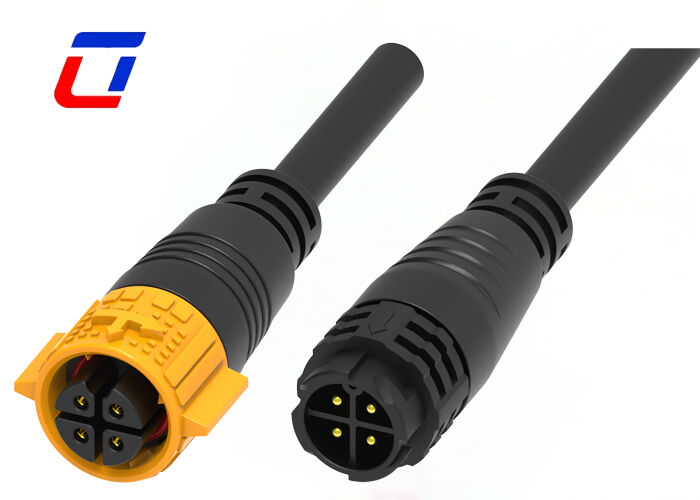

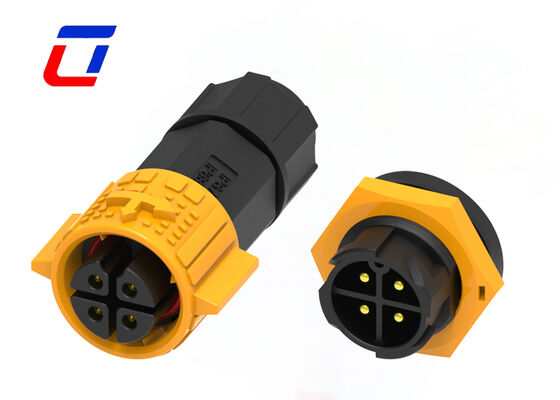

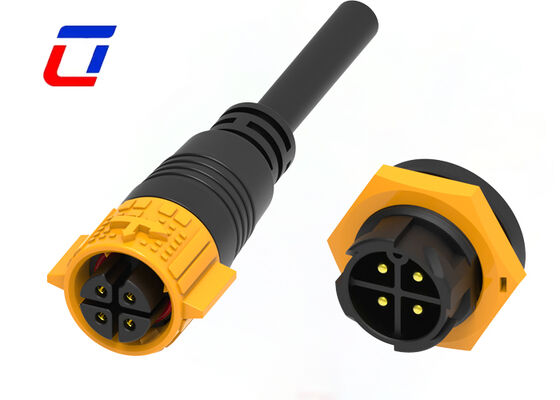

Name: PA66 15A M19 4 Pin Connector Round Waterproof Quick Lock Industrial Power Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Thuis Producten Openlucht Waterdichte schakelaar

PA66 15A M19 4 Pin Connector Round Waterproof Quick Lock Industrial Power Connectors

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs
Modelnummer:	M19

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	1. Plastic zak; 2. Karton; 3. Volgens de eisen van de klant
Levertijd:	3 ~ 6 werkdagen
Betalingscondities:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Levering vermogen:	100.000 paar maandelijks

Contact

Gedetailleerde productomschrijving

Pin:	4-pins draad naar draad / bord	Huidige beoordeling:	15A voor stroom
Nominale spanning:	300V	Materiaal:	Nylon
Kleur:	Rood Blauw Wit Zwart Geel	Vlambestendige beoordeling:	UL94-V0
Markeren:	PA66 waterproof power connector , M19 4 pin industrial connector , quick lock round connector

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Quick Description

The PA66 M19 4Pin round waterproof connector is a professional industrial power connection component engineered for continuous industrial power supply scenarios. Molded with high-quality modified PA66 raw material, it features robust mechanical strength and flame retardancy. Adopting tool-free Quick Lock fastening design, the connector supports fast plug-and-play installation. Rated 15A current and 300V voltage, paired with IP67 all-weather waterproof performance, this compact round connector delivers stable, low-loss power transmission, serving as a reliable and cost-effective standard wiring solution for indoor and outdoor industrial electromechanical equipment.

Widely used in industrial automation equipment, outdoor industrial lighting, electromechanical machinery, photovoltaic power supply systems, workshop industrial control devices and small power units. Ideal for standard power connection and batch matching of industrial equipment under long-term indoor and outdoor working conditions.

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 15A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

PA66 15A M19 4 Pin Connector Round Waterproof Quick Lock Industrial Power Connectors 2
