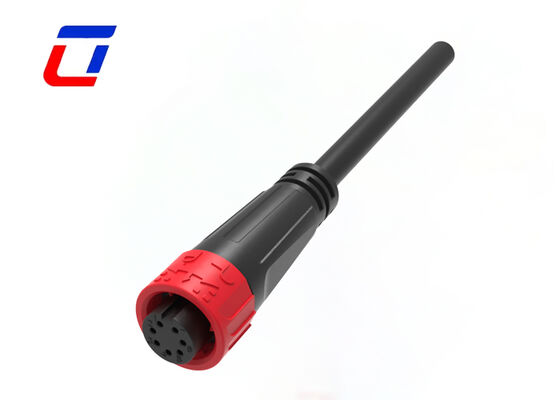

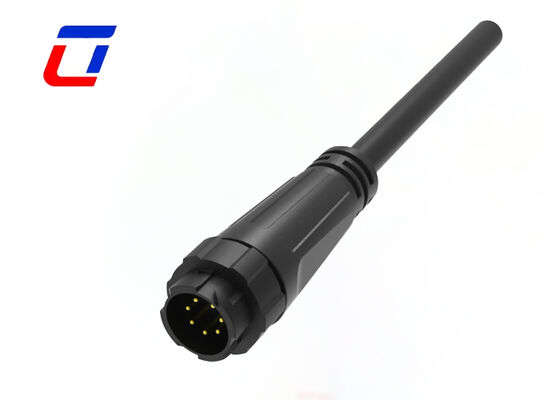

Name: 5A M16 Nylon 7 Pin Waterproof Connector CE Plastic Pa66 Data Quick Lock Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Thuis Producten Openlucht Waterdichte schakelaar

5A M16 Nylon 7 Pin Waterproof Connector CE Plastic Pa66 Data Quick Lock Connector

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs/TUV/UL
Modelnummer:	M16

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	1. Plastic zak; 2. Karton; 3. Volgens de eisen van de klant
Levertijd:	3 ~ 6 werkdagen
Betalingscondities:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Levering vermogen:	100.000 paar maandelijks

Contact

Gedetailleerde productomschrijving

Pin:	7Pin	Huidige beoordeling:	5A
Nominale spanning:	60V	Materiaal:	Nylon
Kopernaalden:	Koperlegering	Afdichtingsmateriaal:	Waterdichte O-ring
Beschermingsniveau:	IP67
Markeren:	5A M16 waterproof connector , Nylon 7 pin quick lock connector , PA66 plastic waterproof data connector

M16 7-Pin Waterproof Industrial Data Connector

Product Overview

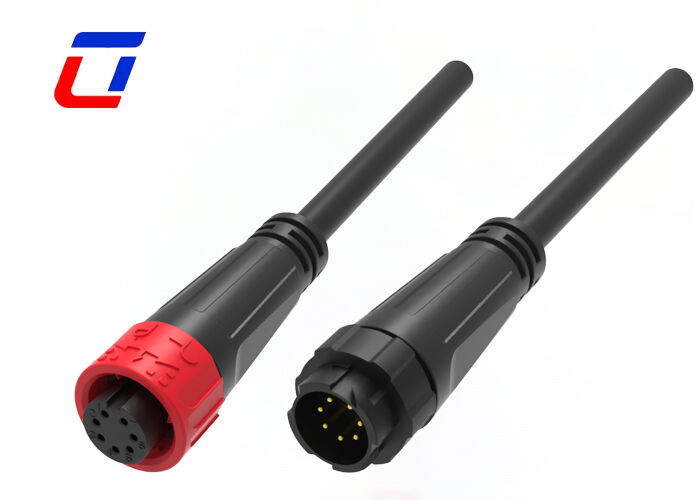

M16 Male Female 7-Pin Waterproof Automotive Connectors designed for low power signal transmission with reliable performance in demanding industrial environments.

Main Features

Push lock quick release system for easy installation
Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
Field assembly versions: wire to wire and wire to board
Cable assembly service supported with custom options available
OEM/ODM services welcome

Product Description

High-performance PA66 Nylon Material
Made of high-strength, heat-resistant and anti-aging PA66 nylon material, with excellent insulation and mechanical performance for long-term reliable use.
7-Pin Precision Layout for Data Transmission
Optimized 7-pin design dedicated for stable data and signal transmission, with low interference and high fidelity, ideal for sensors and control systems.
5A Safe Current & Stable Performance
Rated current 5A, suitable for low-power data, signal and control circuits, ensuring safe and stable operation in various equipment.
IP67 Waterproof & Dustproof Structure
Fully sealed waterproof design, effectively blocking moisture, dust and oil contamination, suitable for outdoor and harsh industrial environments.
Quick Lock Fast Connection Mechanism
Equipped with quick lock structure for fast and tool-free plugging, firm connection, anti-vibration and anti-loosening.
Standard M16 Circular Interface
Universal M16 size with high compatibility, easy for panel mounting, cable assembly and equipment replacement.
CE Certified & Safe to Use
Compliant with CE safety standards, ensuring reliable and secure electrical performance for global market applications.

Electrical Parameters

Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Specifications

Frequently Asked Questions

How to track my shipment?

Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real-time status online or contact our team for updates.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.

label:
