Name: M16 IP67 Waterproof Circular Connectors 8 Gauge Male To Female Connector For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Thuis Producten Waterdichte cirkelvormige aansluiting

M16 IP67 Waterproof Circular Connectors 8 Gauge Male To Female Connector For Data

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs
Modelnummer:	M16

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	Standaard omdoos
Levertijd:	5 tot 8 werkdagen
Betalingscondities:	T/T, D/A, D/P, MoneyGram, L/C
Levering vermogen:	100000 paren per maand

Contact

Gedetailleerde productomschrijving

Materiaal:	PA66	Sollicitatie:	Vermogen, auto-industrie, LED, elektrische apparatuur, LED-verlichting enz.
Aantal pinnen:	8Pin	Huidig:	5A
Waterdichte beoordeling:	IP67	Vlambestendige beoordeling:	UL94-V0
Markeren:	M16 waterproof circular connector , 8 gauge male to female connector , IP67 waterproof data connector

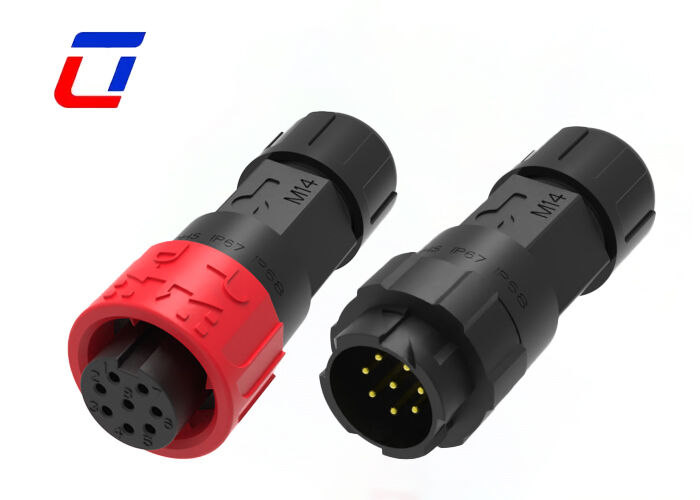

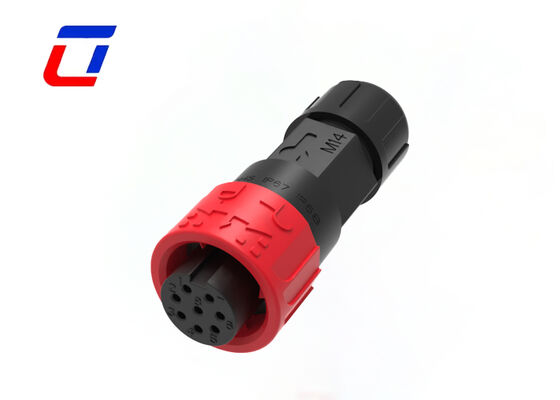

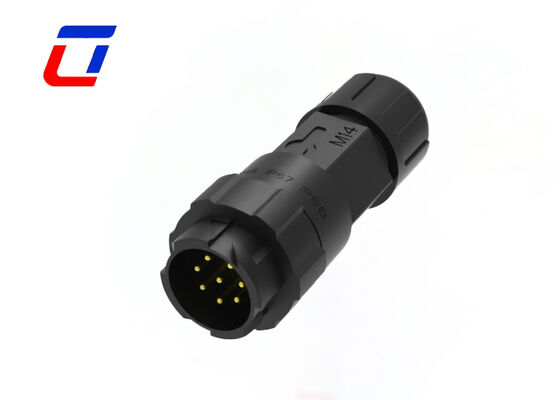

PA66 M16 8 Pin Male Female Connectors

Industrial Data Connector for Signal Transmission

Product Overview

M16 8 Pin Waterproof Connector with 5A rating and IP67 protection, featuring quick-release male-female design for industrial signal transmission applications.

IP67 Waterproof & Dustproof Performance
IP67 rated fully sealed structure, effectively prevents water, moisture, dust and dirt intrusion, suitable for outdoor, humid and harsh industrial environments.

Standard M16 Circular Connector Design
Compact M16 round interface with high compatibility, easy for panel mounting, equipment assembly and replacement in various devices.

8 Pin Configuration for Stable Data Transmission
8-pin precise terminal layout, optimized for signal transmission, low interference and stable transmission performance for data and control signals.

5A Safe Current Rating
Rated current 5A, suitable for low-power data transmission, sensor signals, control modules and communication equipment.

Product Specifications

Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Poles	8
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Operating Temperature Range	-40°C to +105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Durability Rating	500 Cycles
UL Flammability Rating	UL 94V-0

Key Features

Push lock quick release system for efficient operation
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin configurations
Field assembly version with both wire-to-wire and wire-to-board options
Current rated 5A for long-term continuous operation
Cable assembly service supported with custom options available
OEM/ODM services welcome for specialized requirements

Application Industries

Communications Equipment
Product Coding Machines and Inkjet Systems
Inventory Product Coding
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Production Dimensions
