M16 DC Waterproof Connector ODM Wire To Wire 5 Pin Power Quick Lock Connector

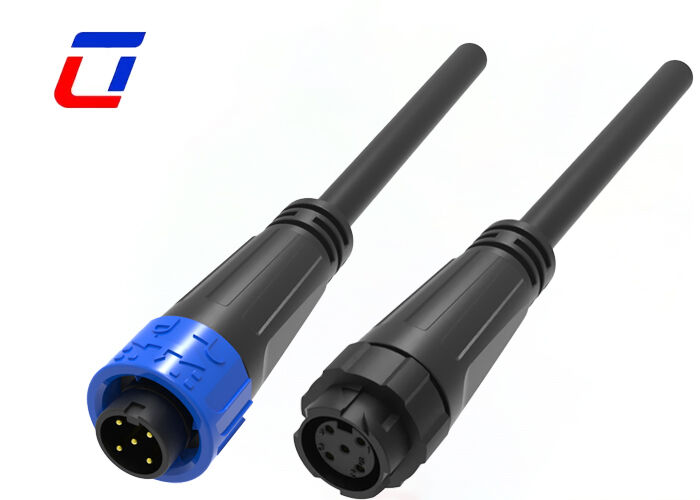

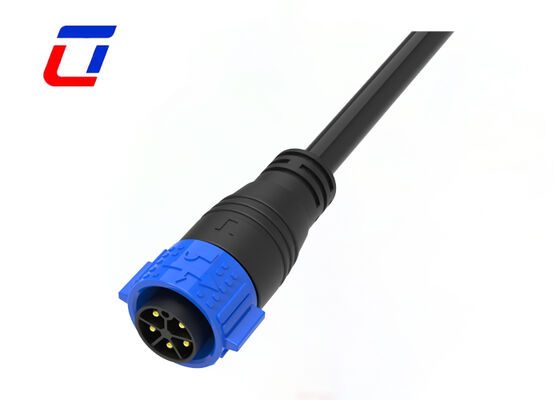

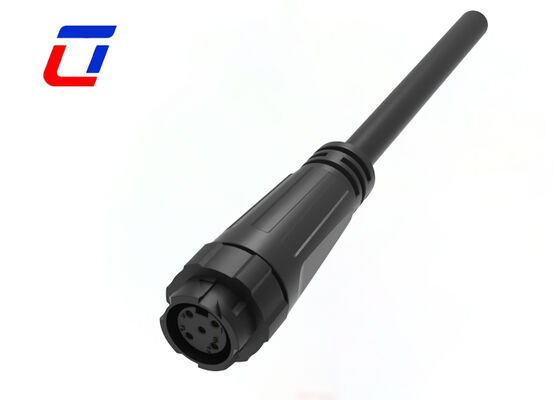

M16 5 Pin 300V Push Lock Waterproof Cable Connector IP67
Push-Pull Quick Connect Mechanism
Adopts precision push-pull self-locking structure, enabling one-hand fast plugging and unplugging without tools. The connection is firm and not easy to loose under vibration, greatly improving on-site installation and maintenance efficiency.
5-Pin Power-Optimized Terminal Layout
Designed with 5-pin configuration dedicated for power transmission, with reasonable pin spacing and high-current carrying capacity, ensuring low contact resistance and stable power delivery for industrial equipment.
Fully Molded Waterproof Integrated Structure
One-piece molded construction provides excellent waterproof, tensile and bending resistance. The cable and connector are integrated as a whole, effectively preventing water ingress and wire breakage in harsh environments.
IP67 Industrial-Grade Protection Performance
With multi-layer sealing design, it reaches IP67 waterproof and dustproof level, suitable for long-term use in industrial sites, humid, dusty and outdoor environments with strong environmental interference.
Key Features
- Push-lock quick release system
- Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
- Field assembly version supports both wire-to-wire and wire-to-board connections
- High current rating up to 8A for continuous operation
- Cable assembly service available for custom requirements
- OEM/ODM services supported
Electrical Parameters
| Number of Poles |
5Pin waterproof connector |
| Current Rating |
8A max |
| Voltage Rating |
125VAC max |
| Durability Voltage |
500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application Industries
- Communications equipment
- Product coding machines
- Inventory product coding systems
- Inkjet systems
- Solar power systems
- Industrial inkjet equipment
- Electric power equipment
- Laboratory forensic & pathology equipment
- Heavy machinery
Production Dimension
