Name: M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Thuis Producten Waterdichte Stopcontactdoos

M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector Of 3+9

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs/TUV
Modelnummer:	M19

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	Doos
Levertijd:	5 tot 8 werkdagen
Betalingscondities:	T/T, D/A, D/P, MoneyGram, L/C
Levering vermogen:	100000 paren per maand

Contact

Gedetailleerde productomschrijving

Aantal pinnen:	3+9-pincode	Huidig:	15A+5A
Waterdichte beoordeling:	IP67	Temperatuurbereik:	-40℃~+105℃
Materiaal:	Nylon	Vlambestendige beoordeling:	UL94-V0
Markeren:	M19 circular connector 12 pin , TUV certified waterproof plug , 3+9 power signal connector

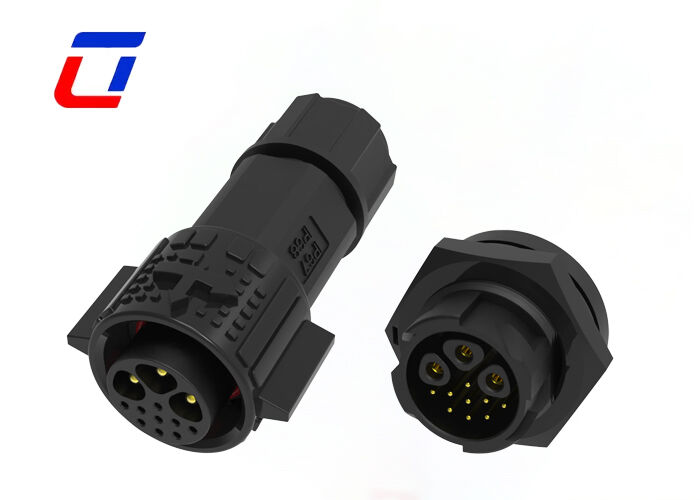

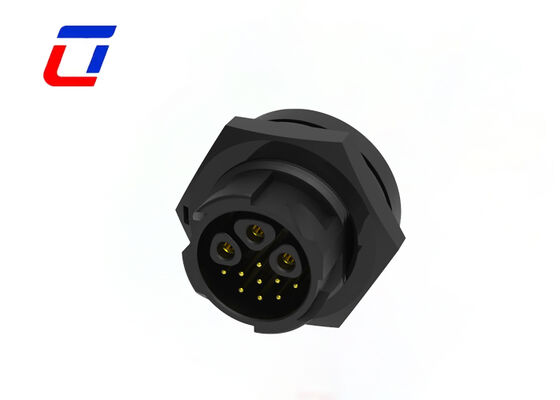

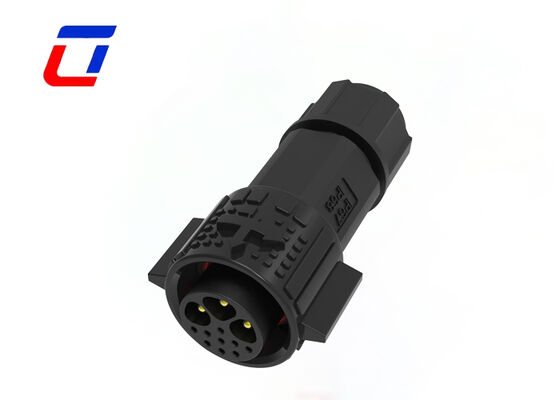

M19 Circular Connector 12 Pin TUV Certified Power Signal Multi Pin Connector

Quick Release Wire Connector M19 3+9 Pin Waterproof 300V Connector

This M19 Circular Connector features a 12-pin (3+9) precision configuration with TUV certification, integrating both power and signal transmission functions. The 3-pin channel provides stable power supply while the 9-pin channel handles multi-group signal transmission, enabling separated and coordinated operation for complex working conditions.

Built with an M19 standard circular structure, it ensures precise and firm male-female docking, stable contact impedance, and excellent vibration resistance and weatherability. Made from high-durability materials with advanced sealing design, it's suitable for outdoor and industrial humid environments, providing reliable connections for various equipment applications.

Main Features

Push lock quick release system for easy operation
Multiple core configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
Power-signal combinations: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions available: wire-to-wire and wire-to-board options
20A current rating for long-term operation
Cable assembly services supported with customization options
OEM/ODM services welcome

Technical Specifications

Connector System	Cable-to-Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Material	PA66
Number of Poles	3+9
Current Rating	15A+5A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s
Operating Temperature Range	-40°C to 105°C
IP Protection Rating	IP67
Durability Rating	250-251 cycles
UL Flammability Rating	UL 94V-0

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Industrial inkjet equipment
Solar power systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector's insulation material and the spacing between contact points. Some components or devices may not function properly when operated below their rated voltage specifications.

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; Air freight: 7-15 working days; Sea freight: 20-45 working days. Delivery time varies by destination and shipping method selected.

How do I place an order? What is the process?

The ordering process is straightforward: Confirm product details and receive a proforma invoice; Make the agreed down payment; We begin production and provide progress updates; Pay the balance before shipment; We arrange delivery and provide tracking information.
