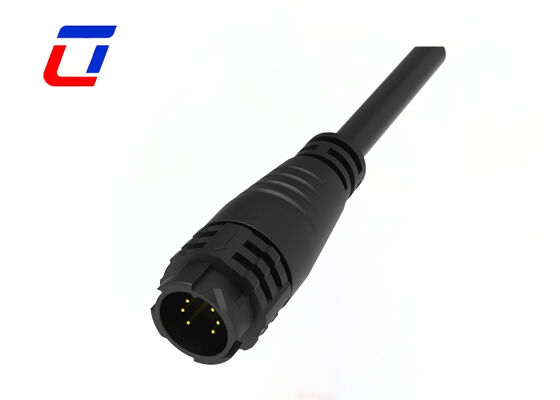

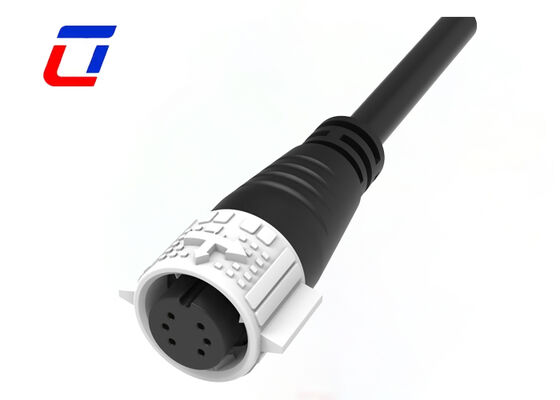

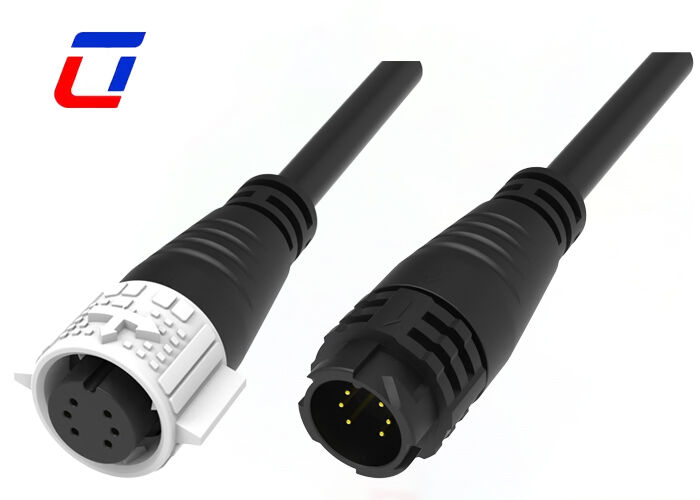

Name: Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Thuis Producten Waterdichte dataconnector

Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs
Modelnummer:	M19

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	Hoogwaardige exportkarton
Levertijd:	3 tot 6 werkdagen
Betalingscondities:	T/T, D/A, D/P, MoneyGram, L/C
Levering vermogen:	100000 paren per maand

Contact

Gedetailleerde productomschrijving

Aantal pinnen:	6Pin	Huidig:	10A
Nominale spanning:	300V	Waterdichte beoordeling:	IP67
Kleur:	Rood Blauw Wit Zwart Geel	Temperatuur:	-40~+105℃
Markeren:	M19 6 pin waterproof connector , outdoor waterproof data connector , male female wire connector waterproof

M19 6-Pin Outdoor Waterproof Data Connector

Product Overview

This industrial-grade M19 6-pin waterproof connector is specifically engineered for outdoor data transmission applications. Featuring excellent sealing performance and stable conductivity, it provides reliable data connections for outdoor electronic equipment. The male-female pairing design ensures precise 6-pin core connections for efficient transmission of various low-current data signals.

Key Features

IP67 rated waterproof and dustproof protection
Push-lock quick release system for easy installation
High-conductivity brass terminals with gold plating
Wide operating temperature range: -40°C to +105°C
Weather-resistant PA66 housing material
Multiple pin configurations available (2-20 pins)
Wire-to-wire and wire-to-board assembly options
10A maximum current rating for continuous operation
Custom cable assembly and OEM/ODM services available

Electrical Specifications

Number of Poles	6-pin configuration
Current Rating	10A maximum
Voltage Rating	300V AC maximum
Durability Voltage	1000V AC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500V DC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Housing Material	PA66
Contact Material	Gold-plated brass
Seal Material	Silicone

Application Industries

Communications equipment
Industrial inkjet systems and coding machines
Solar power systems
Electric power equipment
Laboratory and forensic equipment
Heavy machinery
Security monitoring systems
Smart agriculture
Industrial automation
New energy equipment

Product Dimensions

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector's insulation material and contact spacing. Some components may not function properly below their rated voltage specification.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—typically 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation agreements.
