Name: M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Thuis Producten Waterdichte Stopcontactdoos

M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector

Productdetails:

Plaats van herkomst:	China
Merknaam:	Ulinkcon
Certificering:	CE/Rohs/TUV/UL
Modelnummer:	M19

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	Onderhandeling
Prijs:	Onderhandelbaar
Verpakking Details:	1. Plastic zak; 2. Karton; 3. Volgens de eisen van de klant
Levertijd:	3 ~ 6 werkdagen
Betalingscondities:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Levering vermogen:	100.000 paar maandelijks

Contact

Gedetailleerde productomschrijving

Pin:	9Pin	Huidige beoordeling:	5A
Geslacht:	Man tot vrouw	Materiaal:	Nylon
Beschermingsniveau:	IP67	Vlambestendige beoordeling:	UL94-V0
Markeren:	M19 waterproof panel mount connector , 9 pin low current wire connector , waterproof wire to board connector

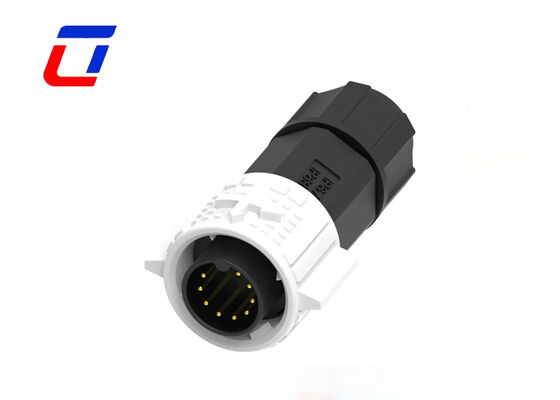

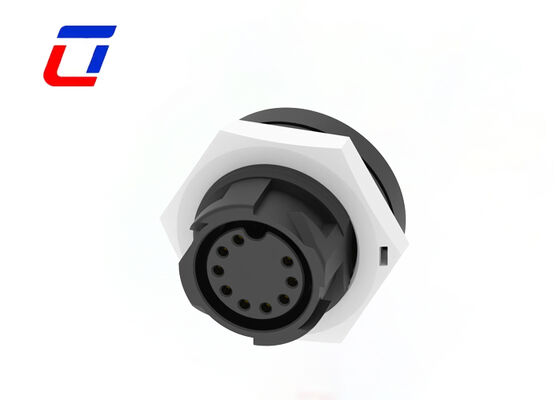

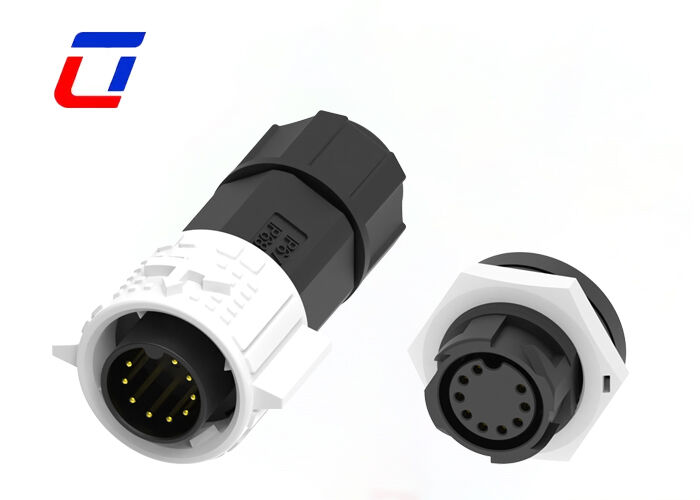

M19 9 Pin Waterproof Cord Connector Panel Mount Low Current Wire To Board Connector

Product Overview

The M19 9-pin waterproof cord connector is a dedicated low-current signal transmission solution engineered for harsh environments. Featuring a panel-mount design, it enables stable interconnection between cables and circuit boards. Boasting IP67 ingress protection and precision structural design, it serves as a reliable choice for signal transmission in industrial and outdoor equipment.

Key Features

Push lock quick release system
Multiple pin configurations: 2-18 pins for power and signal applications
Power and signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported
OEM/ODM customization available

Core Performance Highlights

Superior Waterproof & Dustproof Protection: IP67 rating with silicone sealing gasket and epoxy potting technology
Stable Low-Current Signal Transmission: 9 gold-plated copper alloy contacts for accurate signal transmission
Secure Connection & Stable Installation: Push-pull self-locking mechanism with excellent vibration resistance
Wide Temperature Adaptability: Operating range of -40℃ to +105℃ with UL94-V0 flame-retardant housing

Application Industries

Growth Lights, Communications Equipment, Product Coding Machines, Inventory Product Coding, Inkjet Systems, Solar Systems, Industrial Inkjet Equipment, Electric Power Equipment, Laboratory Forensic & Pathology Equipment, Communications Equipment, Heavy Machinery

Technical Specifications

Parameter	Specification
Number of Poles	9Pin
Current Rating	5A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s
Contact Resistance	10 mΩ max
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Product Design

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Can I have custom label?

A: Yes, of course. You can create your own private label and packaging. If you need packaging design, we have professional designers to serve you.

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs to be paid by the customer. Please provide your courier account number and detailed address for immediate shipment.

Q: Who is responsible for customs clearance? Do you provide necessary documents?

A: We provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.
