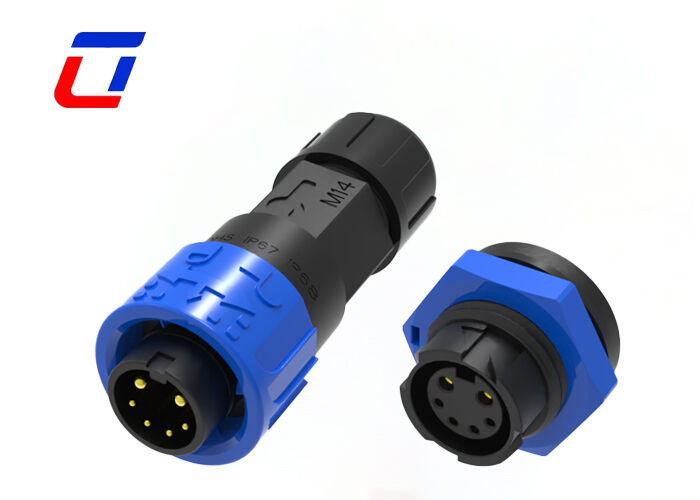

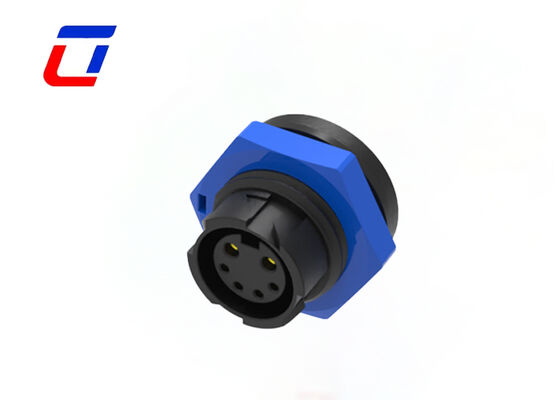

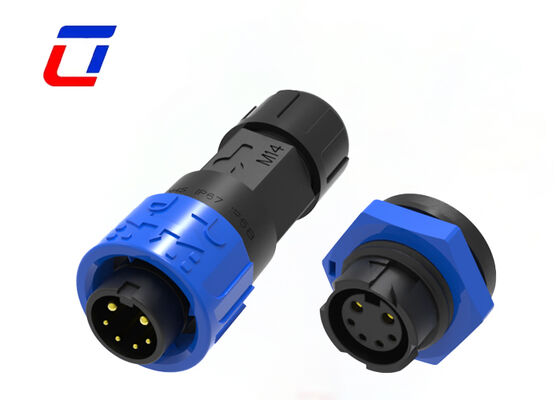

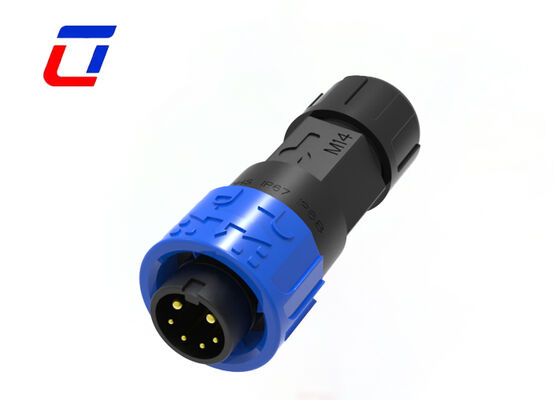

M16 2+4 Pin Wire To Board Connector ODM Industrial Power And Signal Plug Socket
PA66 Plastic 2+4 Multi Pin IP67 Waterproof Connector M16
Application Industries
- Growth Lights
- Communications Application
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar System
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Product Features
Dual-Function Power & Signal Transmission
This connector integrates 2 power pins and 4 signal pins into a single compact unit, enabling simultaneous delivery of stable power supply and high-precision signal transmission. The integrated design eliminates the need for separate power and signal connectors, streamlining wiring layouts and significantly reducing installation complexity for multi-functional industrial devices.
Broad Application Compatibility
Engineered to perform in harsh operating conditions, it is widely compatible with industrial automation equipment, outdoor lighting systems, marine devices, sensors, and control systems—all of which demand reliable and uninterrupted power and signal transmission.
Flexible M16 Connector Configurations
Available in both wire-to-wire and wire-to-board versions for the M16 connector series, it offers dual terminal connection options: soldering terminals and screw terminals. This flexibility allows seamless integration with diverse wiring setups, catering to the specific installation requirements of different industrial scenarios.
Technical Specifications
| Electrical Parameters |
| Number of Poles |
2+4 pin waterproof connector |
| Current Rating |
15+5A max. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
600VAC max |
| Current Rating |
15A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max. Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Specifications
