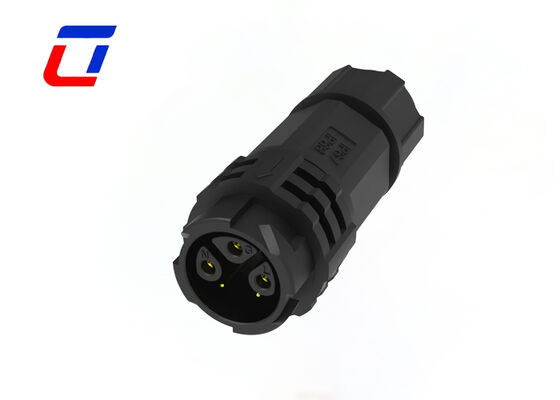

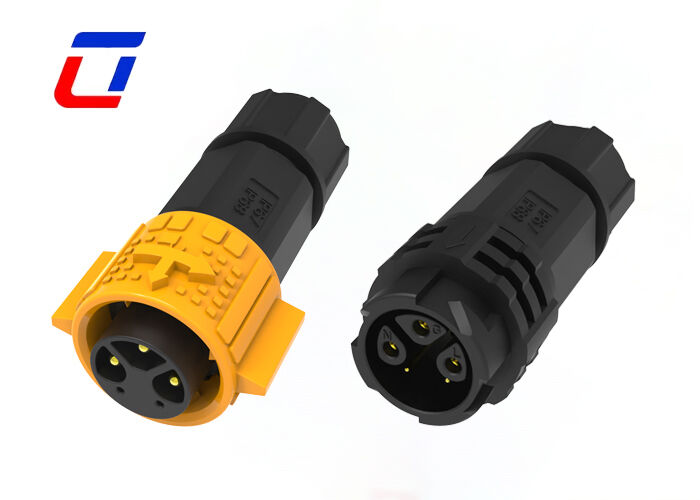

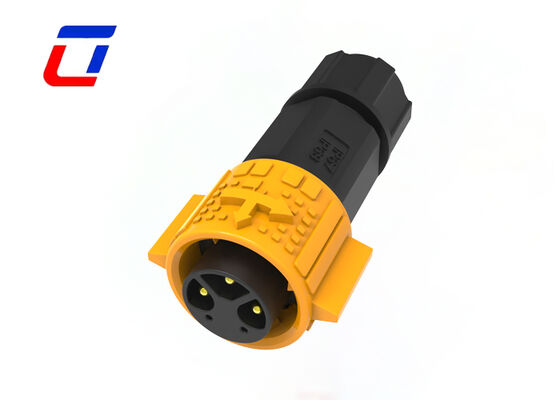

Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors

Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors

  • Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
  • Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
  • Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
Productdetails:
Plaats van herkomst: China
Merknaam: Ulinkcon
Certificering: CE/Rohs
Modelnummer: M19
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: Onderhandeling
Prijs: Onderhandelbaar
Verpakking Details: Doos
Levertijd: 5 tot 8 werkdagen
Betalingscondities: T/T, D/A, D/P, MoneyGram, L/C
Levering vermogen: 100000 paren per maand
Contact
Gedetailleerde productomschrijving
Aantal pinnen: 3+2PIN Huidig: 15A
Waterdichte beoordeling: IP67 Temperatuurbereik: -40℃~+105℃
kleur: Zwart Blauw Wit Rood Geel Diameterbereik: 4,5-11
Markeren:

M19 waterproof wire connectors

,

3+2 pin gold plated connectors

,

15A outdoor wire connectors

Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors
Product Overview

Multi Pin Male Female Connector M19 3+2 Pin Wire To Wire Low Current Power Data Connector designed for reliable industrial applications.

Key Features
  • Gold-plated contact design for stable, durable conductive transmission
  • IP67 waterproof and dustproof protection for harsh outdoor environments
  • Wire-to-wire reinforced structure with anti-pulling and anti-vibration performance
  • Push lock quick release system for easy operation
  • Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power; 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power/signal combined
  • Current rated 20A for continuous operation
  • Field assembly versions for wire-to-wire and wire-to-board applications
  • Cable assembly service and OEM/ODM support available
Technical Specifications
Product Type Features Connector System: Cable-to-Cable
Sealable: Yes
Connector & Contact Terminates To: Wire & Cable
Circular Connector Type: Plug, Receptacle
Shell Type: Plastic Shell
Product Type: Connector Kit
Electrical Characteristics Number of Poles: 3+2
Current Rating: 15A max
Voltage Rating: 300VAC max
Durability Voltage: 1000VAC @ 60 s
Body Features Shell Material: PA66
Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic
Hermetically Sealed: Yes
Entry Style: Side
Environmental Protection Type: Elastomer Sealed, Hermetically Sealed
O-Ring Material: Elastomer Sealed, Hermetically Sealed
Environmental Protection: Yes
Usage Conditions Operating Temperature Range: -40°C to 105°C
IP Water Sealing Level: IP67
IP Dust Sealing Level: 6
Durability Rating: 250-251 cycles
UL Flammability Rating: UL 94V-0
Application Industries
Communications Product Coding Machines Inventory Product Coding Inkjet Systems Solar Systems Industrial Inkjet Equipment Electric Power Equipment Laboratory Forensic & Pathology Equipment Communications Equipment Heavy Machinery
Production Dimensions
Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors 0
Technical Details
Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors 1 Circular Multi Pin Connectors 3+2 Pin M19 15A Gold Plated Wire To Wire Connectors 2
Frequently Asked Questions
What is rated voltage?
Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.
How to track my shipment?
Once goods are shipped, we provide tracking numbers and logistics platform links for real-time status updates. Contact our team for assistance.
Are your products certified? What certifications do you have?
All products are certified by RoHS, CE, and other international standards. Specific certifications (FCC, UL, etc.) can be provided upon request based on your target market requirements.
